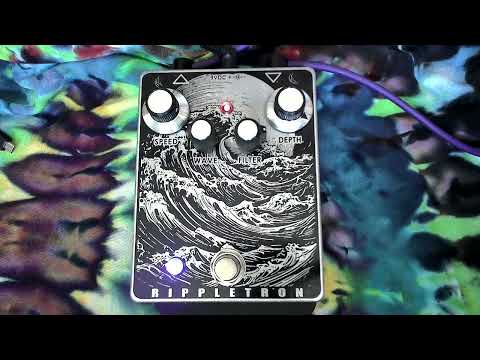

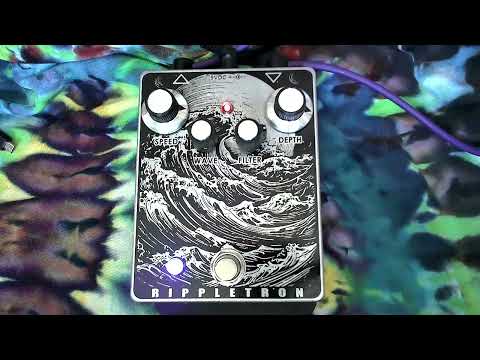

Rippletron V2 Modulator

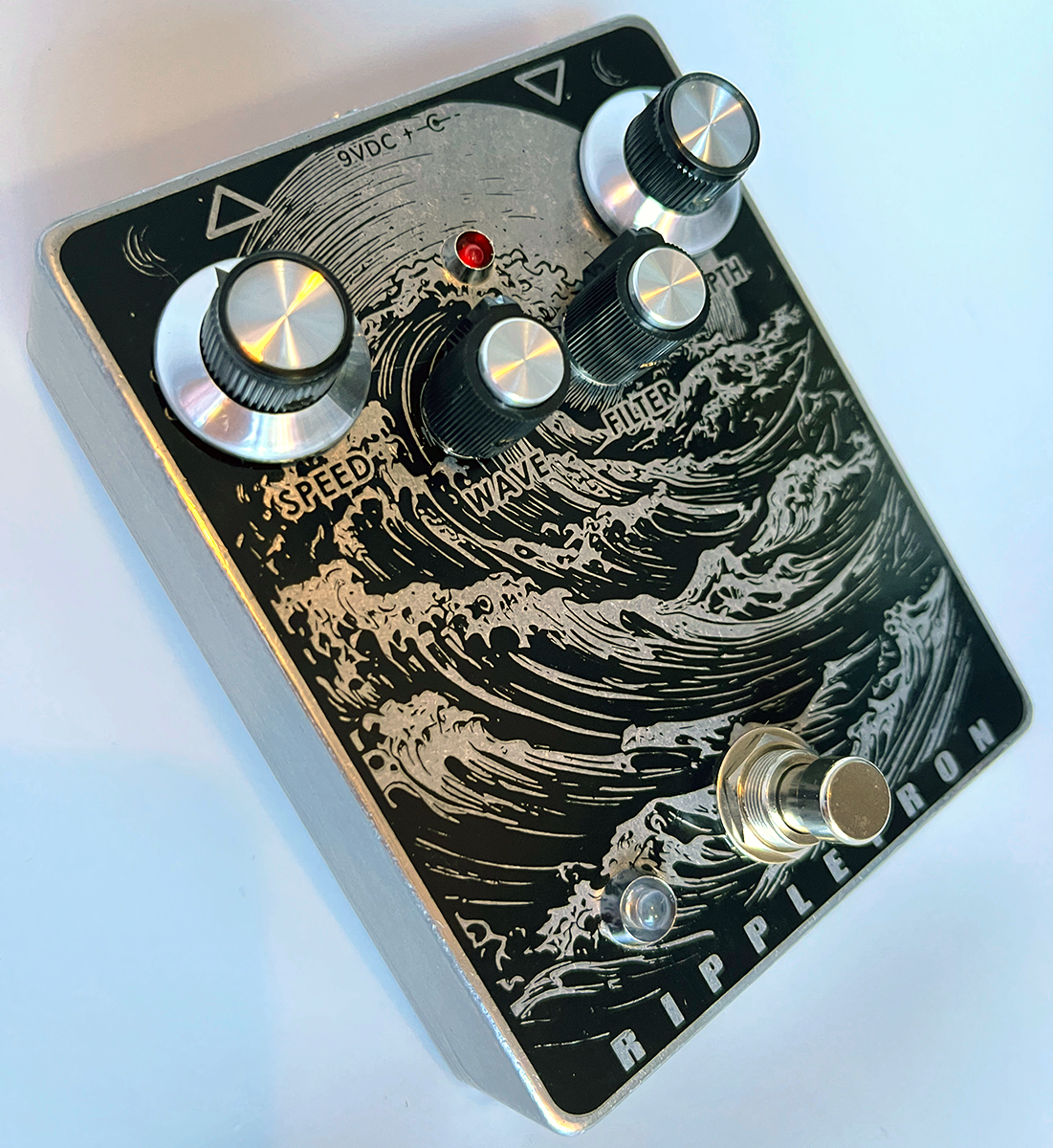

The Rippletron Modulator combines elements of Pitch Modulation, Tremolo and Phasing to create a one-of-a-kind sound. Housed in a polished aluminum  pedalboard friendly top mount 1590bb enclosure, the Rippletron is a great addition to any board. The 3mm red rate LED is active even when bypassed, giving a quick visual representation of the LFO speed.

The V2 incorporates an internal set of dip switches to select Bass or Guitar mode. Units ship set to guitar mode. Bass mode uses larger audio coupling capacitors which results in a lower frequency response - no reason not to play guitar with it in bass mode if you like the sound!

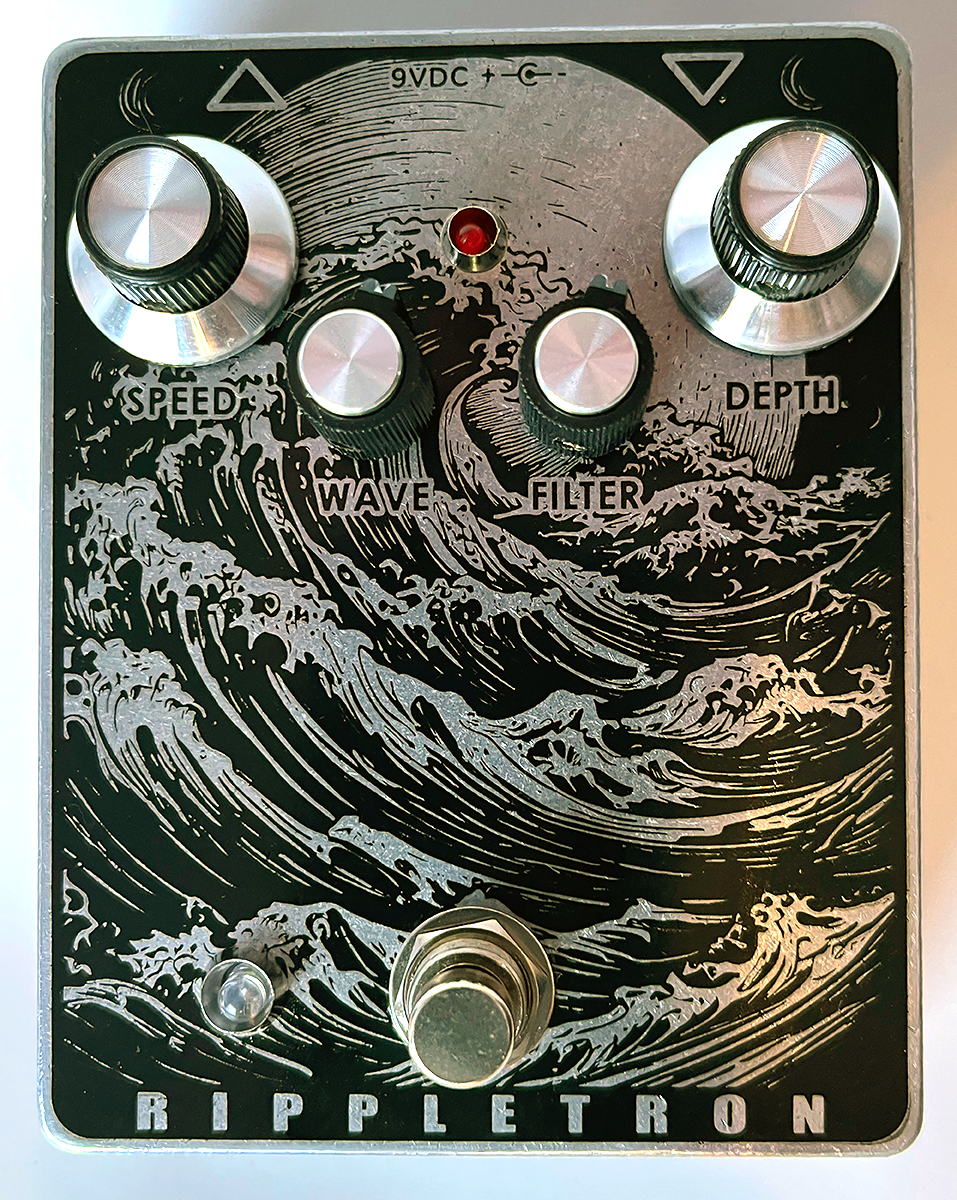

Controls are:
Speed: Adjusts the rate of the LFO Modulation
Depth: Adjusts the intensity of the pitch and volume Modulation
Wave: Adjusts the intensity of volume modulation (tremolo). At minimum, tremolo is indescernible while at max, tremolo is a deeper square wave.
Filter: Adjusts the resonance of the modulation. Adds more phasing effect

Depth, Wave and Filter are very interactive, opening up a ton of tonal possibilities.

True Bypass Switching
Require Center Negative 9V DV Power Supply (Not Included)

Hand built in Nashville, TN using the highest quality components and original design PCB's.
