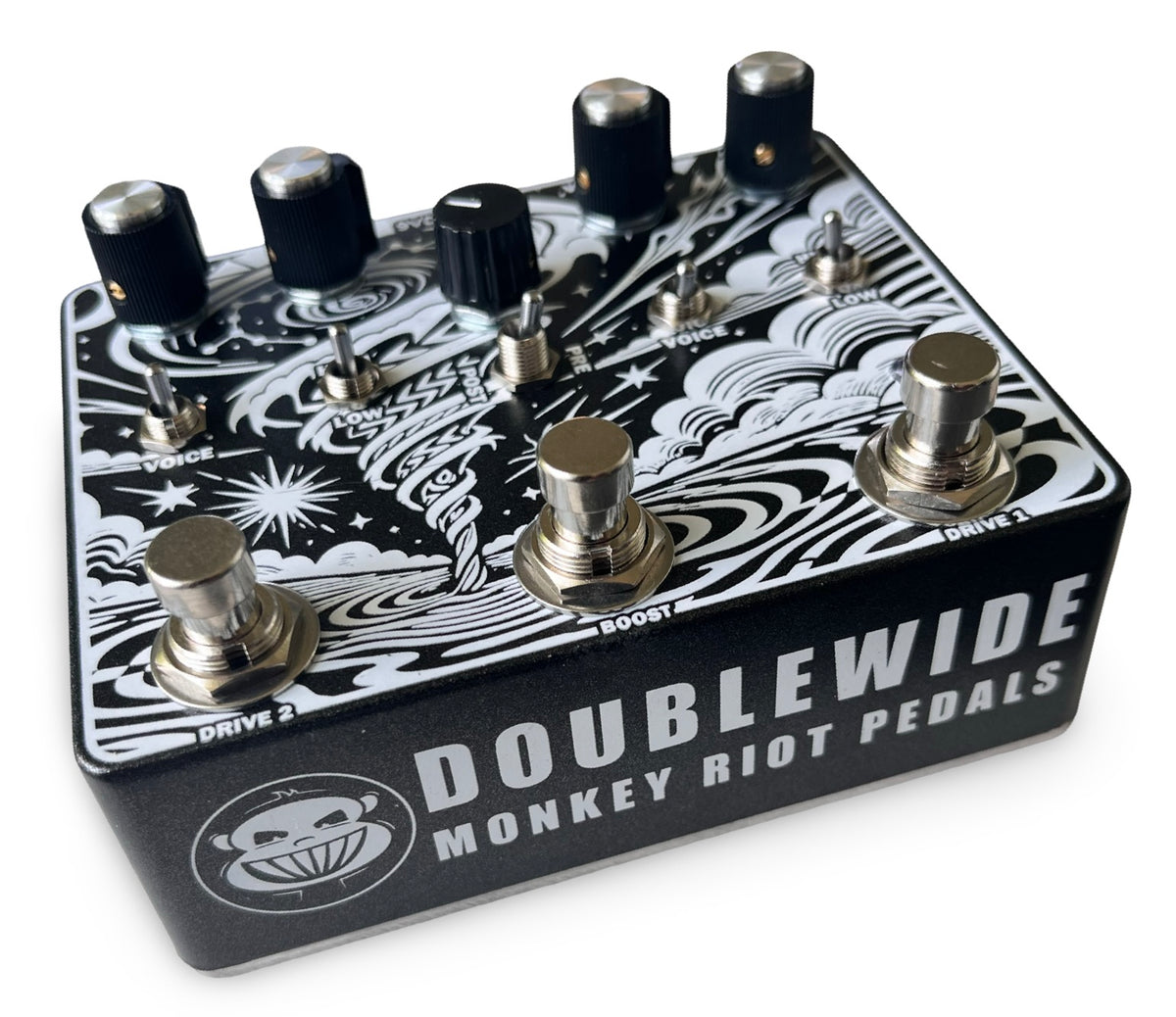

Doublewide Dual Overdrive

The Doublewide combines two identical low/mid gain transistor overdrives and a clean MOSFET boost circuit in one 1590BBS Enclosure for a swiss-army knife drive pedal. Independent bypass footswitches for the boost and each drive allow for endless gain combos. Each drive circuit uses a hand selected NOS 2N3565 Silicon Transistor.

The Voice Switch adjusts the character of clipping with 3 option from High Headroom Cleans to a Crunchy Vintage Drive.

The High/Low Switch selects between 2 Gain Modes.

The MOSFET Boost has a level control and a Pre/Post Switch. In PRE mode, the Boost is placed before the drive, allowing you to drive the front end of the circuit harder - which equals more distortion. In POST mode, the Boost is placed after the drive and acts as a clean level boost - perfect for adding some level for leads.

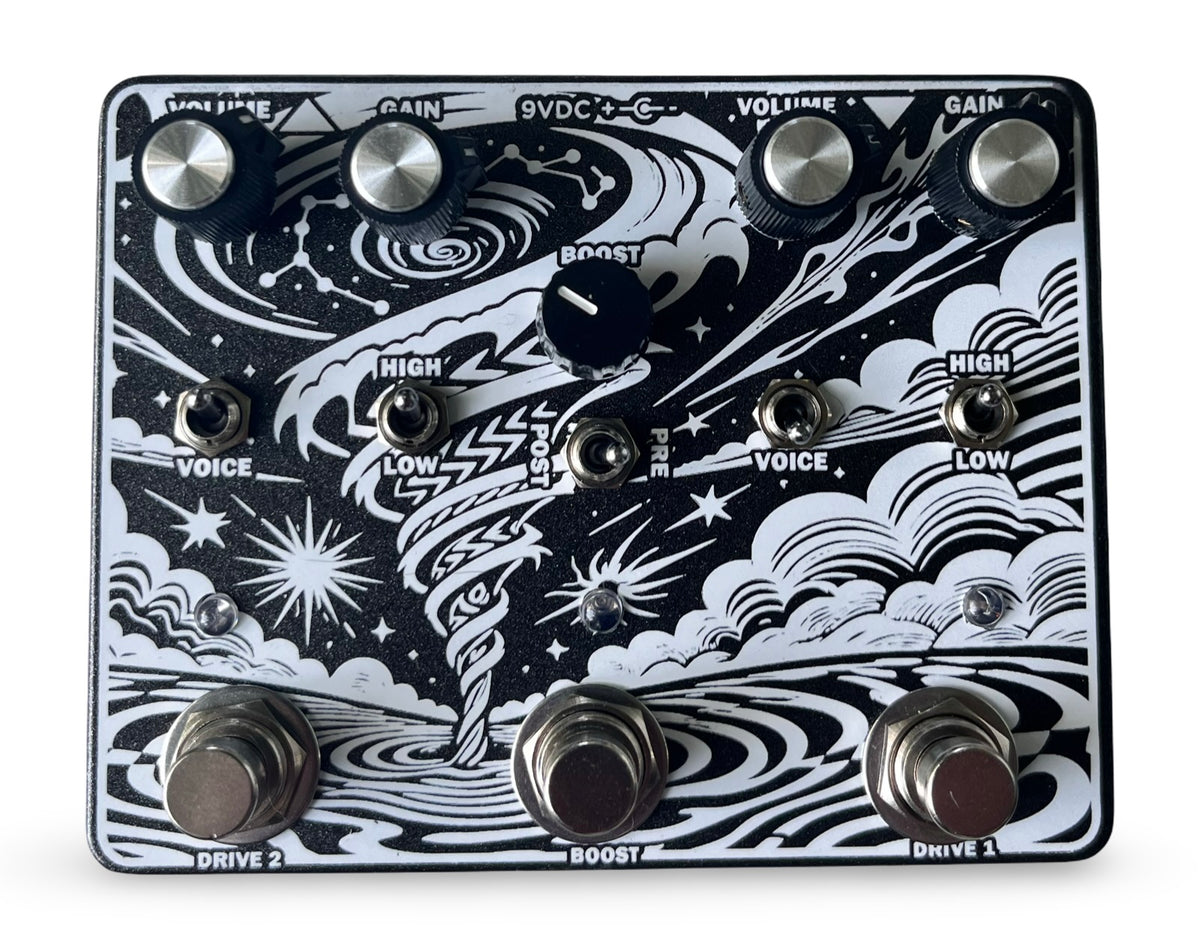

Drive Controls:
Level - Adjusts the Output Level
Gain - Adjusts Amount of Distortion
Voice Switch - 3 Way, Selects Amount of Clipping
High/Low Switch -Selects High or Low Gain Mode

Boost Controls:
Level - Adjusts the Amount of Boostl
Pre/Post Switch - Changes Order of Effects. Pre Mode places the Boost before Overdrive to Add Distortion. Post Mode places Boost after Overdrive, adding Clean Output Level.

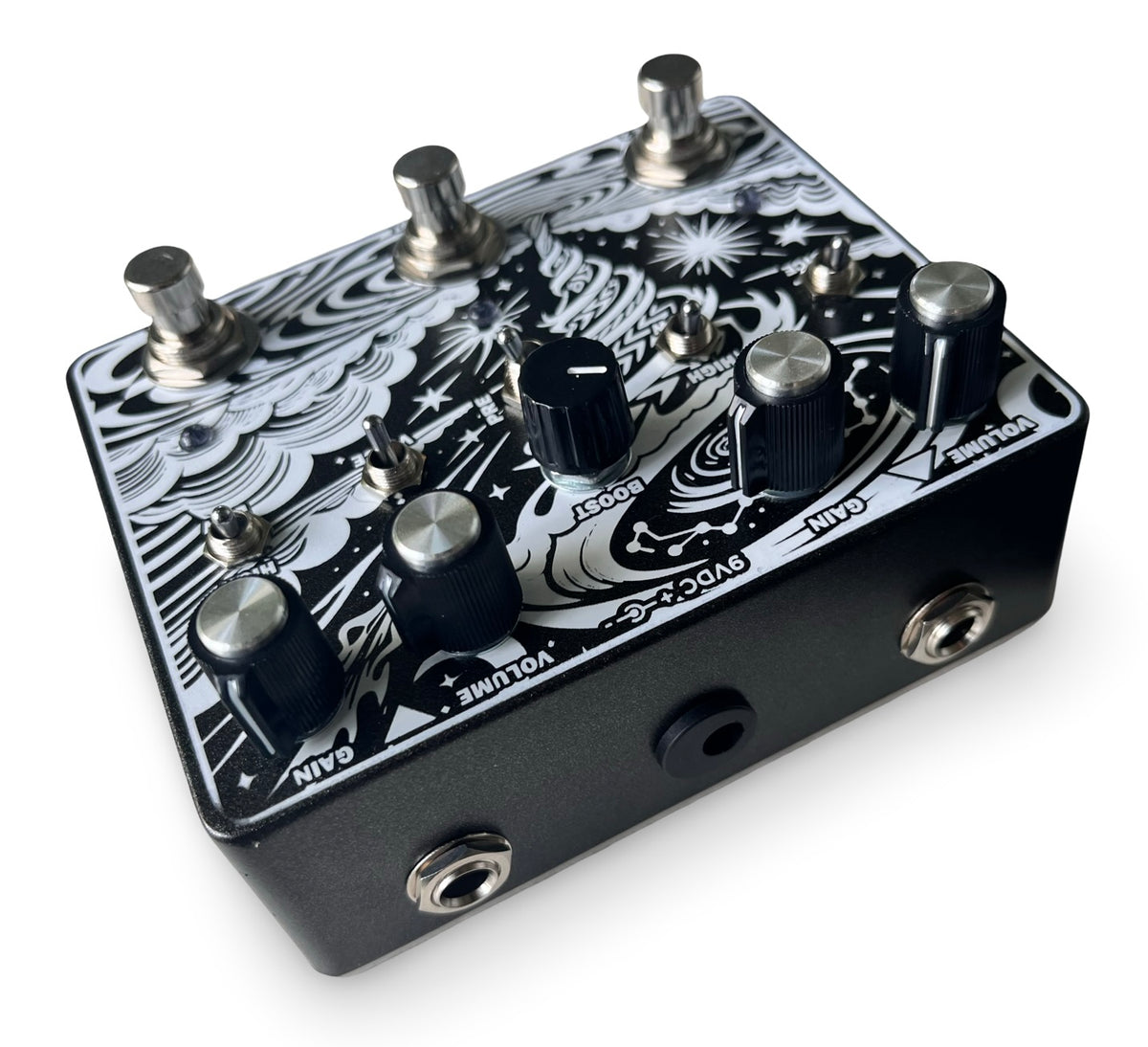

Top Mounted Jacks, 1590BBS Enclosure
Requires External 9v Center Negative Power Supply
